Ferrite Rod
Created with Pixso. Ferrite Magnet NiZn MnZn Ferrite Rod Impeder Bar Core Rohs ISO9001

Ferrite Magnet NiZn MnZn Ferrite Rod Impeder Bar Core Rohs ISO9001

Brand Name: Careful
Model Number: R
Price: $0.03/pieces
Detail Information
Place of Origin:
Zhejiang, China
Certification:
RoHs ISO9001
Type:
Soft
Composite:
Ferrite Magnet
Shape:
Bar
Application:
Industrial Magnet
Tolerance:
±5%
Grade:
NiZn
Delivery Time:
22-30 Days
Material:
NiZn
Highlight:

ferrite rod impeder

,

magnet ferrite bar

,

magnet ferrite rod

Product Description
Rohs ISO9001 NiZn MnZn rod ferrite impeder bar core

Products Description

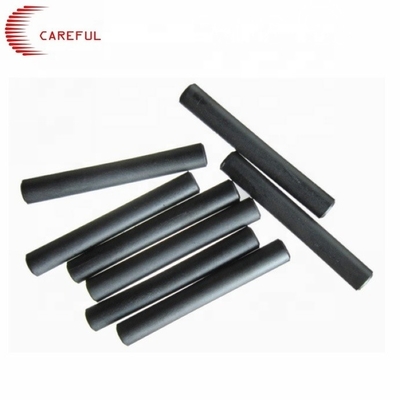

Ferrite Magnet NiZn MnZn Ferrite Rod Impeder Bar Core Rohs ISO9001 0

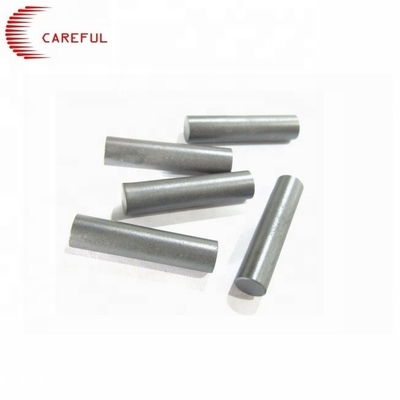

Ferrite Magnet NiZn MnZn Ferrite Rod Impeder Bar Core Rohs ISO9001 1

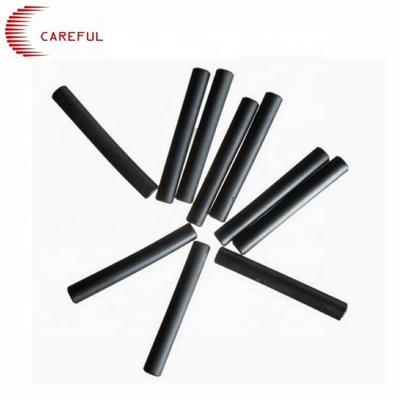

Ferrite Magnet NiZn MnZn Ferrite Rod Impeder Bar Core Rohs ISO9001 2

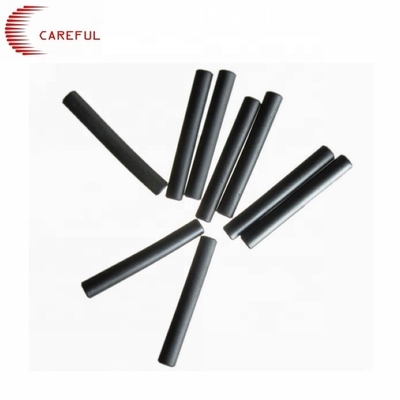

Ferrite Magnet NiZn MnZn Ferrite Rod Impeder Bar Core Rohs ISO9001 3
Item
Value
Place of Origin
China

Zhejiang
Brand Name
Careful
Model Number
R type
Type
Soft
Composite
Ferrite Magnet
Shape
Bar
Application
Industrial Magnet
Tolerance
±10%
Certification
ISO9001:2015;ROHS;REACH
Usage
Choke coil
Frequency
0.1-500mhz
Material
NiZn Ferrite Core

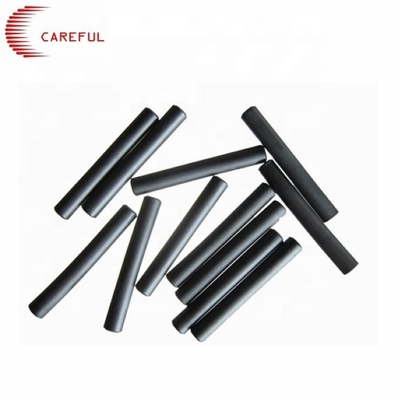

Ferrite Magnet NiZn MnZn Ferrite Rod Impeder Bar Core Rohs ISO9001 4



R Specifications Dimensions:mm
A B
2.2×16 2.2±0.3 16±0.4
2.5×15 2.5±0.3 15±0.4
3×6 3±0.3 6±0.3
3×10 3±0.3 10±0.4
3×11.5 3±0.3 11.5±0.4
3×13.5 3±0.3 13.5±0.4
3×14 3±0.4 14±0.6
3×15 3±0.4 15±0.6
3×16 3±0.4 16±0.6
3×17 3±0.3 17±0.4
3×20 3±0.3 20±0.5
3.5×16 3.5±0.3 16±0.4
3.5×20 3.5±0.3 20±0.5
3.9×15 3.9±0.3 15±0.4
4×10 4±0.4 10±0.5
4×12.5 4±0.3 12.5±0.4
4×15 4±0.4 15±0.5
4×15.5 4±0.3 15.5±0.4
4×18 4±0.3 18±0.4
4×20 4±0.3 20±0.5
4×25 4±0.3 25±0.5
4.8×19 4.8±0.3 19±0.4
5×15 5±0.4 15±0.5
5×20 5±0.4 20±0.6
5×25 5±0.3 25±0.5
6×10 6±0.3 10±0.4
6×12 6±0.3 12±0.4
6×15 6±0.4 15±0.5
6×20 6±0.4 20±0.6
6×25 6±0.4 25±0.6
6×28 6±0.4 28±1
6×30 6±0.4 30±1
7×16 7±0.3 16±0.4
7×18 7±0.3 18±0.4
8×20 8±0.5 20±0.6
8×25 8±0.3 20±0.5
8×28.5 8±0.3 28.5±0.5
8×30 8±0.3 30±0.6
8×35 8±0.3 35±0.6
8×40 8±0.5 40±1
8×45 8±0.3 45±0.7
10×15 10±0.4 15±0.4
10×22 10±0.5 22±0.6
10×24 10±0.5 24±0.6
10×30 10±0.5 30±1
12×40 12±0.4 40±0.7
98.5×25 98.5±1.5 25±1.5

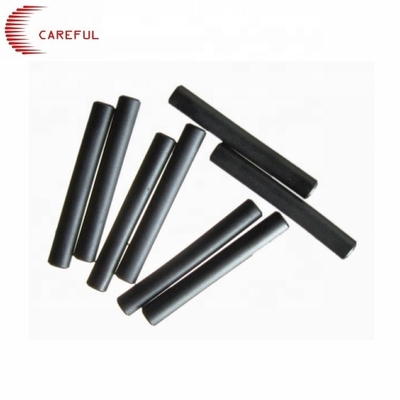

Ferrite Magnet NiZn MnZn Ferrite Rod Impeder Bar Core Rohs ISO9001 5
Company Profile
Ferrite Magnet NiZn MnZn Ferrite Rod Impeder Bar Core Rohs ISO9001 6
Huzhou Careful Magnetism Co., Ltd. is a technically leading corporation, integrating production, management, research, development and service. Our company was established in 2001, Huzhou Careful Magnetism Co., Ltd - a key enterprise in Huzhou City. Our company was assessed as "High and New Technology Enterprise in Zhejiang Province". We have more than 20 years of experience in the field, as our boom development, now we own 3 factoies to service more and more clinets.



Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Who are we?
We are based in Zhejiang, China, start from 2001, sell to Domestic Market(60.00%), Eastern Europe(10.00%), South Asia(5.00%), Eastern Asia(5.00%), North America(5.00%), Northern Europe(4.00%), South America(3.00%), Southern Europe(3.00%),Western Europe(2.00%),Oceania(1.00%),Central America(1.00%), Southeast Asia(1.00%). There are total about 1000+ people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.

3.What can you buy from us?
Soft Ferrite Core, Amorphous core, Inductors, NiZn ferrite.

4. Why should you buy from us not from other suppliers?
We are the biggest manufacture of ferrite core in China for more than 30 years, also with production line of Amorphous core, SMD core, inductors for years. We are already the supplier of Microsoft, GREE, Midea, SAMSUNG, ASUS, Panasonic, etc.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, PayPal, Western Union, Escrow; Language Spoken: English, Chinese.
Ferrite Magnet NiZn MnZn Ferrite Rod Impeder Bar Core Rohs ISO9001 7
