| Brand Name: | careful |
| Model Number: | SCRC/SCNF Type |
| Price: | $0.02-0.40/pieces |
|
Item
|
Value
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
Careful
|
|
Model Number
|
SCRC/SCNF
|
|
Type
|
Soft
|
|
Composite
|

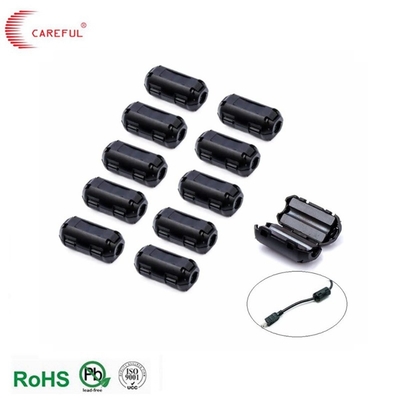

Ferrite Magnet
|
|
Shape
|
Split
|
|
Application
|
Industrial Magnet
|
|
Tolerance
|
±10%
|
|
Material
|
Ni-Zn Ferrite Core
|
|
Certification
|
ISO-9001
|
|
Features
|
snap-on
|
|
Usage
|
EMI
|
| No | Specifications | Fig | Dimensions:mm | ||||
| A | B | C | D | E | |||
| 1 | SCRC 30B | 1 | 11.7±1 | 10.8±1 | 4±0.8 | 21.4±1 | 2.6±1 |
| 2 | SCRC 35A | 1 | 13±1 | 11.8±1 | 3.5±0.8 | 25.5±1 | 2.5±1 |
| 3 | SCRC 35B | 1 | 13±1 | 11.8±1 | 5±0.8 | 25.5±1 | 2.5±1 |
| 4 | SCRC 50 | 5 | 16.5±1 | / | 5±0.8 | 29.5±1 | / |
| 5 | SCNF 50 | 2 | 15±1 | 14±1 | 6±0.8 | 23.1±1 | 2.5±1 |
| 6 | SCRC 50C | 1 | 19.5±1 | 18±1 | 5±0.8 | 35±1 | 5.5±1 |
| 7 | SCNF 65 | 2 | 17.5±1 | 19.5±1 | 6.5±0.8 | 32.5±1 | / |
| 8 | SCRC 70A | 4 | 15±1 | 14±1 | 7±0.8 | 18±1 | 22±1 |
| 9 | SCRC 70B | 1 | 16.5±1 | 15±1 | 7±0.8 | 30±1 | 5.5±1 |
| 10 | SCRC 70C | 5 | 20.7±1 | 22.2±1 | 7.2±0.8 | 39.4±1 | / |
| 11 | SCRC 80A | 3 | 19.5±1 | 23±1 | 8±0.8 | 17±1 | 23±1 |
| 12 | SCRC 80B | 3 | 19.5±1 | 23±1 | 8±0.8 | 19.5±1 | 26±1 |
| 13 | SCRC 80C | 1 | 19.5±1 | 18±1 | 8±0.8 | 35±1 | 5.5±1 |
| 14 | SCRC 80F | 1 | 19.5±1 | 18±1 | 8±1 | 25.5±1 | 4.5±1 |
| 15 | SCRC 90A | 4 | 19.5±1 | / | 9±0.8 | 32±1 | 35.5±1 |
| 16 | SCRC 90B | 1 | 19.5±1 | 18±1 | 9±0.8 | 35±1 | 5.5±1 |
| 17 | SCRC 90C | 6 | 15.6±1 | 28.3±1 | 8.5±1 | 7.5±1 | 6.45±0.5 |
| 18 | SCNF 100 | 2 | 22±1 | 23.5±1 | 10±0.8 | 33±1 | / |
| 19 | SCRC 110B | 4 | 20.5±1 | 33±1 | 11.0±0.8 | 32±1 | 36±1 |
| 20 | SCNF 130A | 2 | 29±1 | 30±1 | 13±0.8 | 32±1 | / |
| 21 | SCRC 130B | 4 | 30±1 | / | 13±0.8 | 34±1 | 39±1 |
| 22 | SCRC 1330B | 1 | 23.5±1 | 20.5±1 | 13.5±0.8 | 36±1 | 10.5±1 |
| 23 | SCRC 150A | 3 | 29±1 | 27±1 | 13.5±0.8 | 15.5±1 | 21.5±1 |
