Nizn Ferrite Core
Created with Pixso. EMI T100 Ferrite Toroidal Core Rohs ISO9001 NiZn MnZn Ferrite Material

EMI T100 Ferrite Toroidal Core Rohs ISO9001 NiZn MnZn Ferrite Material

Brand Name: careful
Model Number: T
Price: $0.01-0.20/pieces
Detail Information
Place of Origin:
Zhejiang, China
Certification:
ISO9001:2015
Type:
Soft
Supplier Type:
Factory
Application:
Electronic And Electrical Equipment
Brand:
Careful
Package Type:
Carton
Operating Temperature:
<300℃
Tolerance:
20%
Package / Case:
As The Customer Required
Highlight:

nizn ferrite toroidal core

,

nizn toroidal ferrite core

,

mnzn ferrite toroidal core

Product Description

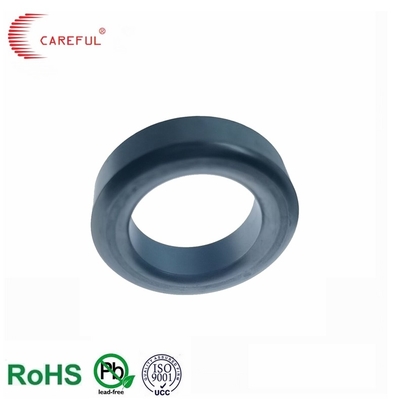

EMI T100 Ferrite Toroidal Core Rohs ISO9001 NiZn MnZn Ferrite Material 0

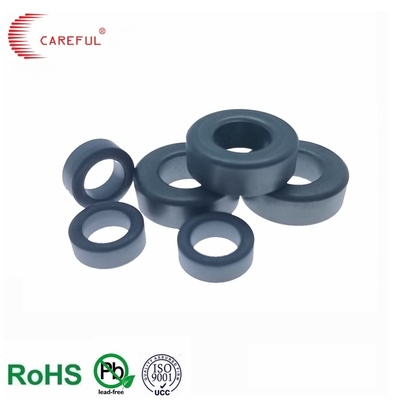

EMI T100 Ferrite Toroidal Core Rohs ISO9001 NiZn MnZn Ferrite Material 1

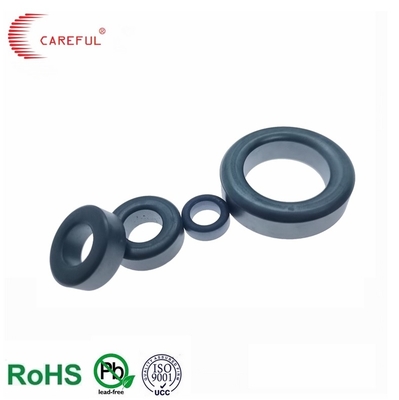

EMI T100 Ferrite Toroidal Core Rohs ISO9001 NiZn MnZn Ferrite Material 2

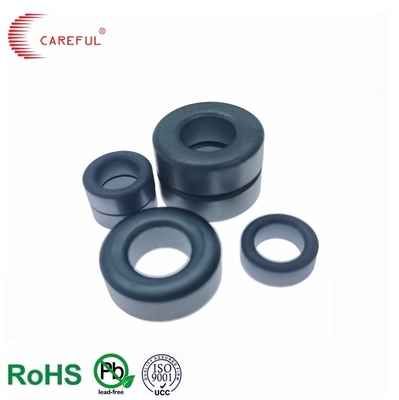

EMI T100 Ferrite Toroidal Core Rohs ISO9001 NiZn MnZn Ferrite Material 3
Place of Origin
China,Zhejiang
Brand Name
Careful
Model Number
T Type
Type
Soft
Composite
Ferrite Magnet
Shape
Toroidal
Application
Industrial Magnet
Tolerance
±10%
Frequency
1khz-500khz
Certification
ISO9001-2015, SGS-ROHS,REACH.
Material
NiZn Power Ferrite
Impedance
As customer's requirement
MOQ
No MOQ for the trial order



Specifications Dimensions:mm
A B C D
RID 2×2.3×3.5 2±0.3 2.3±0.3 3.5±0.3 1±0.3
RID 3.5×2×1.3 3.5±0.3 2±0.3 1.3±0.3 0.8±0.3
RID 3.5×2×2 3.5±0.3 2±0.3 2±0.3 0.8±0.3
RID 3.5×2×2 3.5±0.3 2±0.3 2±0.3 1.2±0.3
RID 3.5×2×2.4-0.8 3.5±0.3 2±0.3 2.4±0.3 0.8±0.3
RID 4×7×3-2.2 4±0.3 7±0.3 3±0.3 2.2±0.3
RID 4.1×6.9×6.6 4.1±0.3 6.9±0.4 6.6±0.4 1.8±0.3
RID 4.6×8.8×5-2.3 4.6±0.3 8.8±0.3 5±0.3 2.3±0.3
RID 5×3×3 5±0.4 3±0.3 3±0.3 1.2±0.3
RID 5.2×3×2-1 5.2±0.3 3±0.3 2±0.3 1±0.3
RID 5.2×3×2-1.2 5.2±0.3 3±0.3 2±0.3 1.2±0.3
RID 5.59×3.05×3.1-1.27 5.59±0.3 3.05±0.3 3.1±0.3 1.27±0.3
RID 5.6×3.05×3-1.27 5.6±0.3 3.05±0.3 3±0.3 1.27±0.3
RID 6.5×3×3-1 6.5±0.3 3±0.3 3±0.3 1±0.3
RID 6.5×3×3.2 6.5±0.4 3±0.3 3.2±0.3 1±0.3
RID 6.5×3×3.2-1.2 6.5±0.3 3±0.3 3.2±0.3 1.2±0.3
RID 6.5×3×3.5 6.5±0.4 3±0.3 3.5±0.3 1.5±0.3
RID 6.5×3×3.6-1.1 6.5±0.3 3±0.3 3.6±0.3 1.1±0.3
RID 6.9×4.1×6.6-1.8 6.9±0.3 4.1±0.3 6.6±0.3 1.8±0.3
RID 7×4×3-1.8 7±0.3 4±0.3 3±0.3 1.8±0.3
RID 7×4×3 7±0.4 4±0.3 3±0.3 2±0.3
RID 7×4×3-2.2 7±0.3 4±0.3 3±0.3 2.2±0.3
RID 7×4×8-1.8 7±0.3 4±0.3 8±0.3 1.8±0.3
RHH 7×6.8×5.6 7±0.4 6.8±0.4 5.6±0.4 1.5±0.4
RID 7.5×2.3×7.5-0.8 7.5±0.3 2.3±0.3 7.5±0.3 0.8±0.3
RID 7.8×5×6.7×2.8-2.2(方孔) 7.8±0.3 5±0.3 6.7±0.3 2.2±0.3
RID 8.4×4.4×8-2 8.4±0.3 4.4±0.3 8±0.3 2±0.3
RID 8.4×4.4×8 8.4±0.4 4.4±0.3 8±0.4 2.1±0.3
RID 8.8×4.6×5-2.3 8.8±0.3 4.6±0.3 5±0.3 2.3±0.3
RID 12×6.5×4 12±0.5 6.5±0.4 4±0.3 3.8±0.3
RID 12×6.5×4-4 12±0.4 6.5±0.3 4±0.3 4±0.3
RID 12×6.5×6-3.8 12±0.4 6.5±0.3 6±0.3 3.8±0.3
RID 12×6.5×7-4 12±0.4 6.5±0.3 7±0.3 4±0.3
RID 12×6.5×8-3.8 12±0.4 6.5±0.3 8±0.3 3.8±0.3
RID 12×6.5×10 12±0.5 6.5±0.4 10±0.5 3.8±0.3
RID 12×6.5×10-4 12±0.4 6.5±0.3 10±0.4 4±0.3
RID 12×6.5×14-3.8 12±0.4 6.5±0.3 14±0.4 3.8±0.3
RID 12×6.5×14-4 12±0.4 6.5±0.3 14±0.4 4±0.3
RID 13×7.5×2.5 13±0.5 7.5±0.4 2.5±0.7 3.8±0.3
RID 13×7×14.35-3.7 13±0.4 7±0.3 14.35±0.4 3.7±0.3
RID 13×7.5×14.35-3.7 13±0.4 7.5±0.3 14.35±0.4 3.7±0.3
RID 13×7.5×14.35 13±0.5 7.5±0.4 14.35±0.5 3.8±0.3
RID 13×7.5×25-3.8 13±0.4 7.5±0.3 25±0.5 3.8±0.3
RID 13×7.5×25-4 13±0.4 7.5±0.3 25±0.5 4±0.3
RID 13×7.5×27-3.8 13±0.4 7.5±0.3 27±0.5 3.8±0.3
RID 13.4×7.5×10-4.2 13.4±0.4 7.5±0.3 10±0.4 4.2±0.3
RID 23.5×10.5×25-6.4 23.5±0.5 10.5±0.4 25±0.5 6.4±0.3
RID 32×16×22-8.3 32±0.6 16±0.4 22±0.5 8.3±0.4
RID 32×16×32 32±1.0 16±0.5 32±1.0 8.3±0.4

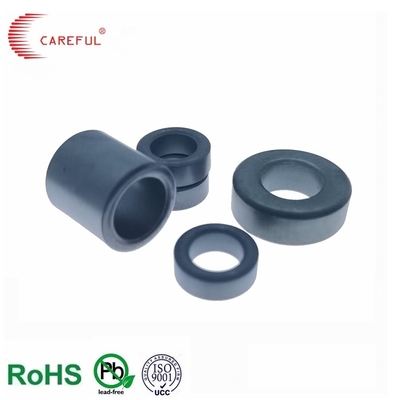

EMI T100 Ferrite Toroidal Core Rohs ISO9001 NiZn MnZn Ferrite Material 4



To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

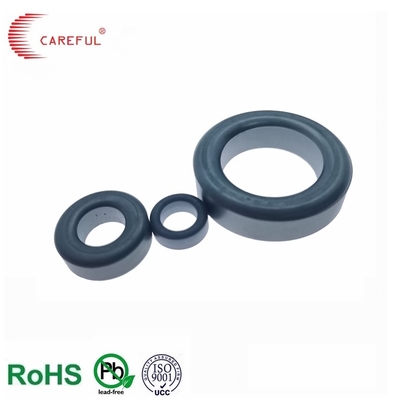

EMI T100 Ferrite Toroidal Core Rohs ISO9001 NiZn MnZn Ferrite Material 5
Huzhou Careful Magnetism Co., Ltd. is a technically leading corporation, integrating production, management, research, development and service. Our company was established in 2001, formally known as Huzhou Cifeng Industry Corporation - a key enterprise in Huzhou City. Our company was assessed as "High and New Technology Enterprise in Zhejiang Province". We have more than 20 years of experience in the field, as our boom development, now we own 3 factoies to service more and more clinets.
FAQ
1. Who are we?
We are based in Zhejiang, China, start from 2001, sell to Domestic Market(60.00%), Eastern Europe(10.00%), South Asia(5.00%), Eastern Asia(5.00%), North America(5.00%), Northern Europe(4.00%), South America(3.00%), Southern Europe(3.00%), Western Europe(2.00%), Oceania(1.00%), Central America(1.00%), Southeast Asia(1.00%). There are total about 1000+ people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.

3.What can you buy from us?
Soft Ferrite Core, Amorphous core, Inductors, NiZn ferrite.

4. Why should you buy from us not from other suppliers?
We are the biggest manufacture of ferrite core in China for more than 30 years, also with production line of Amorphous core, SMD core, inductors for years. We are already the supplier of Microsoft, GREE, Midea, SAMSUNG, ASUS, Panasonic, etc.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, PayPal, Western Union, Escrow; Language Spoken: English, Chinese.
EMI T100 Ferrite Toroidal Core Rohs ISO9001 NiZn MnZn Ferrite Material 6
EMI T100 Ferrite Toroidal Core Rohs ISO9001 NiZn MnZn Ferrite Material 7
